Screw Simpline Node
PLC (Power Line Communication) Embedded street light luminaire controller with connection via screw terminals

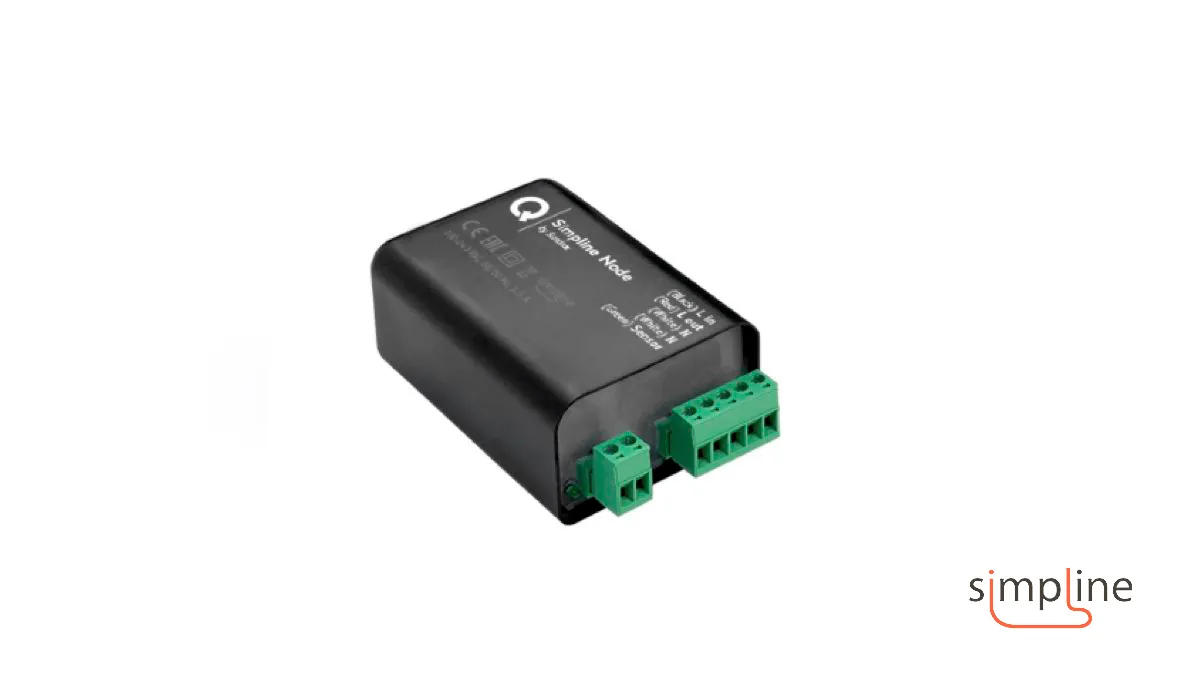

Screw Simpline Node is a PLC (Power Line Communication) control and dimming module for a luminaire or luminaire group.
Screw Simpline Node is compatible with third-party motion sensors.
Screw Simpline Node supports DALI, DALI 2.0, PWM, 1-10V, 0-10V interfaces and individual load control (on/off).
The unit is powered from 110-230 V. The power of the luminaire is supported up to 1000 W.
Screw Simpline Node is controlled individually by Central Gateway QULON C, C1 or C2 and QULON Simpline via 110-230 V power lines. Simpline technology uses the frequency range of 132.5 kHz according to CENELEC EN 50065-1 (band-C).
The device is designed for installation in a luminaire, in a luminaire body or inside a lighting pole via screw. Dust and moisture protection class IP68.
Version with Screw
Available for installation into any luminaire case
Luminaire or pole mounting
Individual lighting control without extra wiring
Motion sensor input
Embedded triac for load switching on/off
Work with luminaires up to 1000W
Working capacity up to 305V
Embedded acelerometer
- Mechanical:
Housing: plastic
Material: metal, plastic
Dimensions, mm: 94(L) x 37,2(H) x 61,2(W)
Mass: 0.3 kg
Mounting: luminaire case or pole mounting - Power & Electrical:
Input Voltage: ~100-250 V, 50/60 Hz
Max current: 3A
Anti-Jamming Filter: integrated (load power
20-250 W), external (load power 250-800 W)
Max load Power: 300 W (integrated anti-jamming
filter); 850 W (external anti-jamming filter) - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 68
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
Communication with controller: CENELEC EN
50065-1 (band C) - Inputs / Outputs:
Connectors: Terminal blocks 2EDGVС
Sensors: motion sensor input - Configuration / Indication:
Setup: remote via QULON C, C1 or C2 and QULON Simpline
Indication: LED - Package Contents:
Screw Simpline Node
- Screw Simpline Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 250 W
- : QUL-PLC-T-250-A
- : 5060452241845
- Screw Simpline Node, load switch, 0-10V/PWM/DALI/DALI 2.0, acelerometer, load 800 W
- : QUL-PLC-T-800-A
- : 5060452241852
- Screw Simpline Node, load switchf, 0-10V/PWM/DALI/DALI 2.0, load 250 W
- : QUL-PLC-T-250-B
- : 5060452241869
- Screw Simpline Node, load switch, 0-10V/PWM/DALI/DALI 2.0, load 800 W
- : QUL-PLC-T-800-B
- : 5060452241876
- Screw Simpline Node, load switch, 0-10V/PWM, load 250 W
- : QUL-PLC-T-250-C
- : 5060452241883
- Screw Simpline Node, load switch, 0-10V/PWM, load 800 W
- : QUL-PLC-T-800-C
- : 5060452241890
- Screw Simpline Node, 0-10V/PWM, load 800 W
- : QUL-PLC-T-800-D
- : 5060452241906
- Screw Simpline Node, 0-10V/PWM, load 250 W
- : QUL-PLC-T-250-D
- : 5060452241913
