QULON-D
Power controller is a centralized voltage stabilizer by reducing the voltage
QULON-D is a clever solution for voltage regulation and control in three-phase networks with conventional lamps. The dimming functions in the range 170-235 V and the "soft start" significantly reduce lighting energy costs and prolong lamp life. The device also has a wide range of diagnostic tools for outgoing power lines as well as overload and short-circuit protection with built-in bypass for emergencies.
The device has an integrated RS-485 (MODBUS) interface for communication with other devices.
The unit is operated by means of push buttons, and remote control via the cabinet controllers is also available.

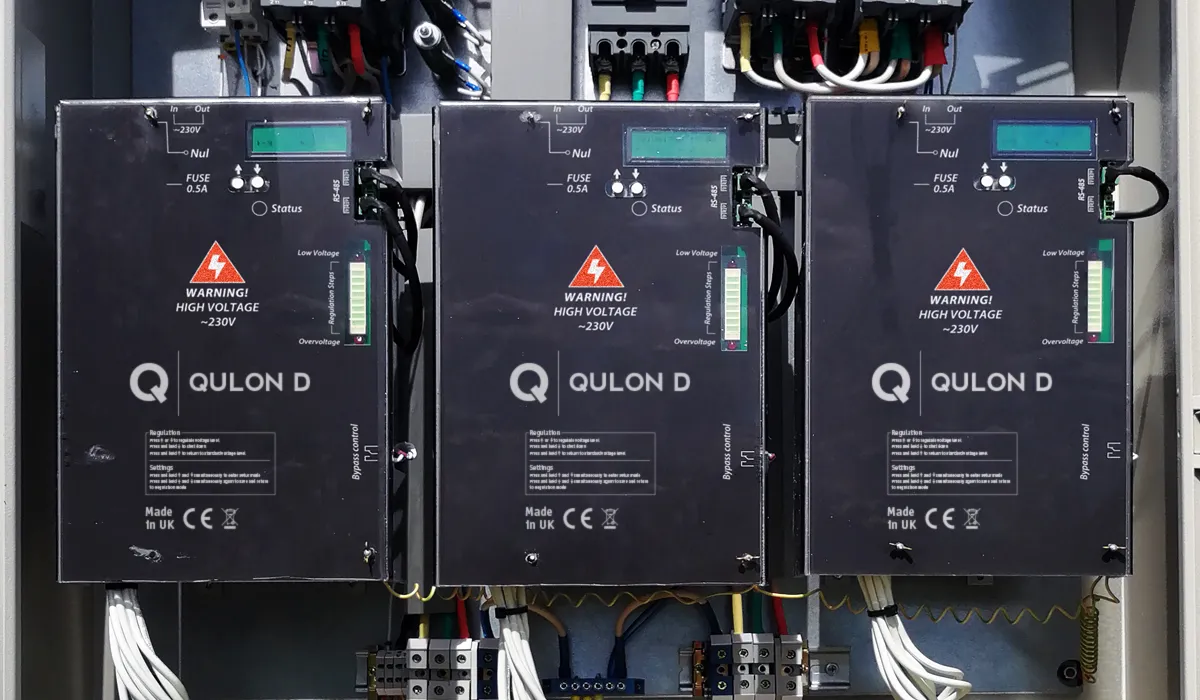

The device is designed for installation in a lighting control cabinet.
Schedule lights on/off
Powerline voltage stabilization
Collecting data from electric meter
Secures soft start-up, therefore prolongs bulb life
Provides diagnostics of outputing power lines
Built-in temperature sensor
Overload protection & short circuit resistance
Bypass
No need to change old lamp
- Mechanical:
Housing: protective cover, radiator
Material: metal, plastic
Dimensions, mm: 1200(L) x 800(H) x 280(W)
Mass: 30 kg
Mounting: flat surface - Power & Electrical:
Input Voltage: three-phase AC 230 V, 50 Hz
Maximum load power: 24, 45, 60 kW
Adjustment range at rated voltage of 230V: 180-245 V
Adjustment step: 5 V
Mains Fuse: 0.5 A - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 20-80%
IP Rating: IP 54
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Serial interface: RS-485 (MODBUS RTU)
Max length of RS-485 line: 1500 m - Inputs / Outputs:
Max voltage at inputs: 270 V
Controllable output lines: 3 phase
Connectors: terminal blocks - Configuration / Indication:
Setup: remote via cabinet controllers, buttons on board
Indication: LCD display, status LED - Package Contents:
QULON-D
- QULON-D, 24 kW, 8 kW per phase
- : QUL-DIM-024
- : 5060452242965
- QULON-D, 45 kW, 15 kW per phase
- : QUL-DIM-045
- : 5060452242972
- QULON-D, 60 kW, 20 kW per phase
- : QUL-DIM-060
- : 5060452242989
