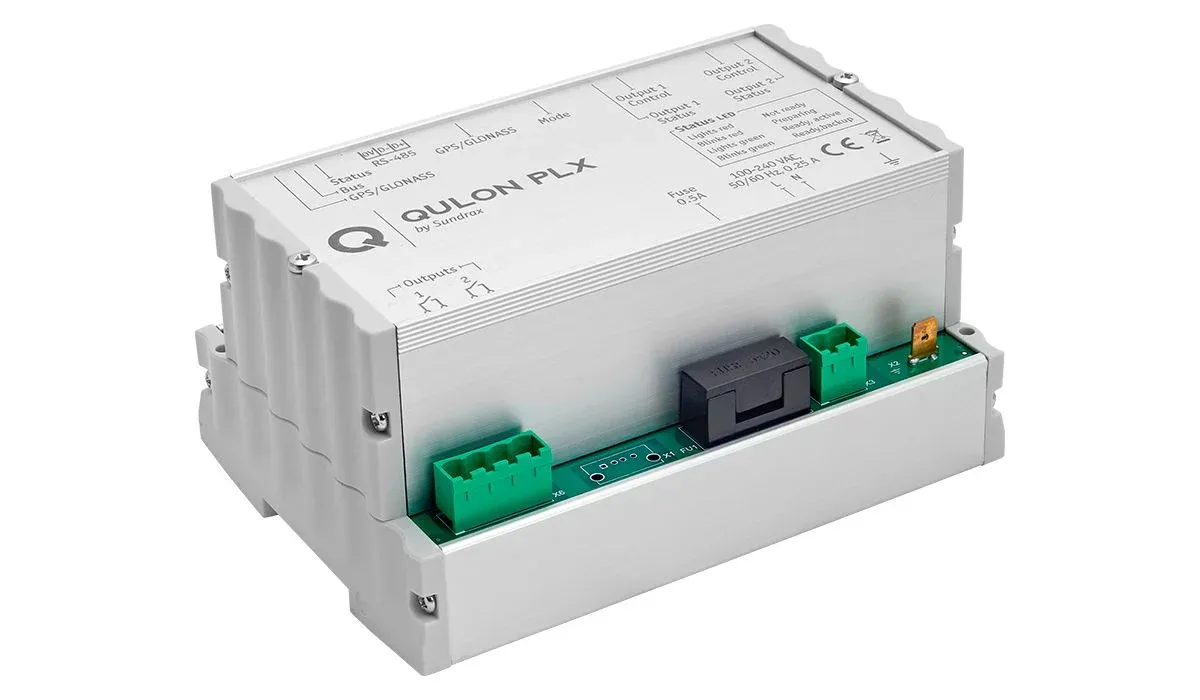

QULON PLX

Modbus-RTU Timer switch relay for lighting management

QULON PLX is a solution for controlling scheduled lighting equipment, which can operate in stand-alone mode or as a standby controller for a lighting control system. The built-in GPS module ensures synchronization with GNSS and reduces the need for regular maintenance.

The unit supports RS-485 interface.

The unit is powered from 100-240 V AC.

The unit can be configured via USB or remotely using the cabinet controller.

The unit is designed for mounting in a DIN-rail lighting control cabinet. The unit has an IP 20 dust and moisture protection class.

    • Built-in GPS receiver

      Highest clock accuracy

      Automatic schedule generation

      Backup controller mode

      DIN rail mount, compact size

    • Mechanical:

      Housing: aluminum DIN mounted case
      Material: metal, plastic
      Dimensions, mm: 142(L) x 74,5(H) x 105(W)
      Mass: 0.55 kg
      Mounting: DIN (4 modules) rail

    • Power & Electrical:

      Input Voltage: ~100-240 VAC, 50/60 Hz
      Input Power (max): 5 W
      Mains Fuse: 0.5 A

    • Environment:

      Operating Temperature: -40...+70°C
      Storage Temperature: -50...+80°C
      Operating Relative Humidity (max): 95%
      IP Rating: IP 20
      Certification: CE compliant, RoHS
      Warranty: 36 Month

    • Interfaces and Protocols:

      Navigation: GPS
      Serial interface: RS-485
      Max length of RS-485 line: 1500 m

    • Inputs / Outputs:

      Relay outputs: 2
      Max voltage and current at outputs: 240 V, 5 A
      Connectors: terminal blocks 15EDGVC

    • Configuration / Indication:

      Setup: DIP switchers, remote via cabinet controllers
      Indication: LEDs

    • Package Contents:

      QULON PLX
      Connector set

    QULON PLX
    • : QUL-PLX-2
    • : 5060452242903
