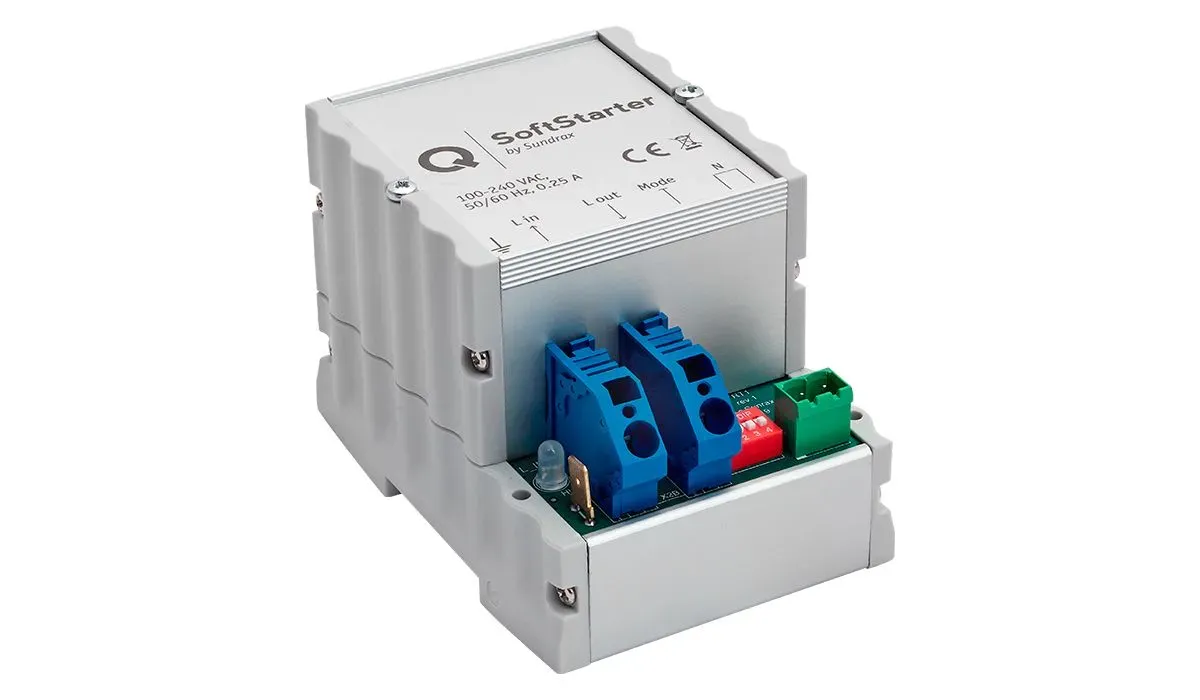

Single-phase/Three-phase Soft Starter for street lighting management single-phase, announcement view
Single-phase/Three-phase Soft Starter for street lighting management single-phase, top view
Single-phase/Three-phase Soft Starter for street lighting management single-phase, side view
Single-phase/Three-phase Soft Starter for street lighting management single-phase, top view (with terminals)
Single-phase/Three-phase Soft Starter for street lighting management three-phase, partial side view

QULON SoftStarter

Single-phase/Three-phase Soft Starter for street lighting management

The QULON SoftStarter is a device for limiting the inrush current in the three-phase network that occurs when a capacitive load is switched on. It is used to reduce the destructive impact of inrush currents of pulse power supplies, LED lamps, strips and other capacitive loads on the switching contacts of control devices to avoid false tripping of circuit breakers.

The unit is supplied via three-phase (380 V) or single-phase (100-240 V) alternating current networks.

The device is set by means of DIP switches. The unit is equipped with input/output LEDs.

The device is designed for installation in a DIN-rail lighting control cabinet.

    • Aluminum case with indelible laser engraving
      Maintaining operability at a voltage of up to 380 V
      Function adjustment of the operating current level
      Power-on delay adjustment function

    • Mechanical:

      Housing: aluminum DIN mounted case
      Material: metal, plastic
      Dimensions, mm (single-phase): 72(L) x 74,5(H) x 105(W)
      Dimensions, mm (three-phase): 142(L) x 74,5(H) x 105(W)
      Mounting: DIN rail

    • Power & Electrical:

      Input Voltage (three-phase): ~380 V, 50 Hz
      Input Voltage  (single-phase): ~100-240V 50/60 Hz
      Input Power (max): 5 W
      Mains Fuse: 0.5 A

    • Environment:

      Operating Temperature: -40...+70°C
      Storage Temperature: -50...+80°C
      Operating Relative Humidity (max): 95%
      IP Rating: IP 20
      Certification: CE compliant, RoHS
      Warranty: 36 Month

    • Inputs/Outputs:

      Connection: Detachable terminals 2EDGVС, DG136T

    • Settings/Indicators:

      Settings: DIP switch
      Indicators: LEDs, for L (input), L (output)

    • Package Contents:

      QULON SoftStarter
      Connector set

    QULON SoftStarter, single-phase, up to 10 A
    • : QUL-OPT-1-10
    • : 5060452243139
    QULON SoftStarter, single-phase, up to 16 A
    • : QUL-OPT-1-16
    • : 5060452243146
    QULON SoftStarter, single-phase, up to 20 A
    • : QUL-OPT-1-20
    • : 5060452243153
    QULON SoftStarter, single-phase, up to 25 A
    • : QUL-OPT-1-25
    • : 5060452243160
    QULON SoftStarter, single-phase, up to 32 A
    • : QUL-OPT-1-32
    • : 5060452243177
    QULON SoftStarter, three-phase, up to 10 A
    • : QUL-OPT-3-10
    • : 5060452243184
    QULON SoftStarter, three-phase, up to 16 A
    • : QUL-OPT-3-16
    • : 5060452243191
    QULON SoftStarter, three-phase, up to 20 A
    • : QUL-OPT-3-20
    • : 5060452243207
    QULON SoftStarter, three-phase, up to 25 A
    • : QUL-OPT-3-25
    • : 5060452243214
    QULON SoftStarter, three-phase, up to 32 A
    • : QUL-OPT-3-32
    • : 5060452243221
