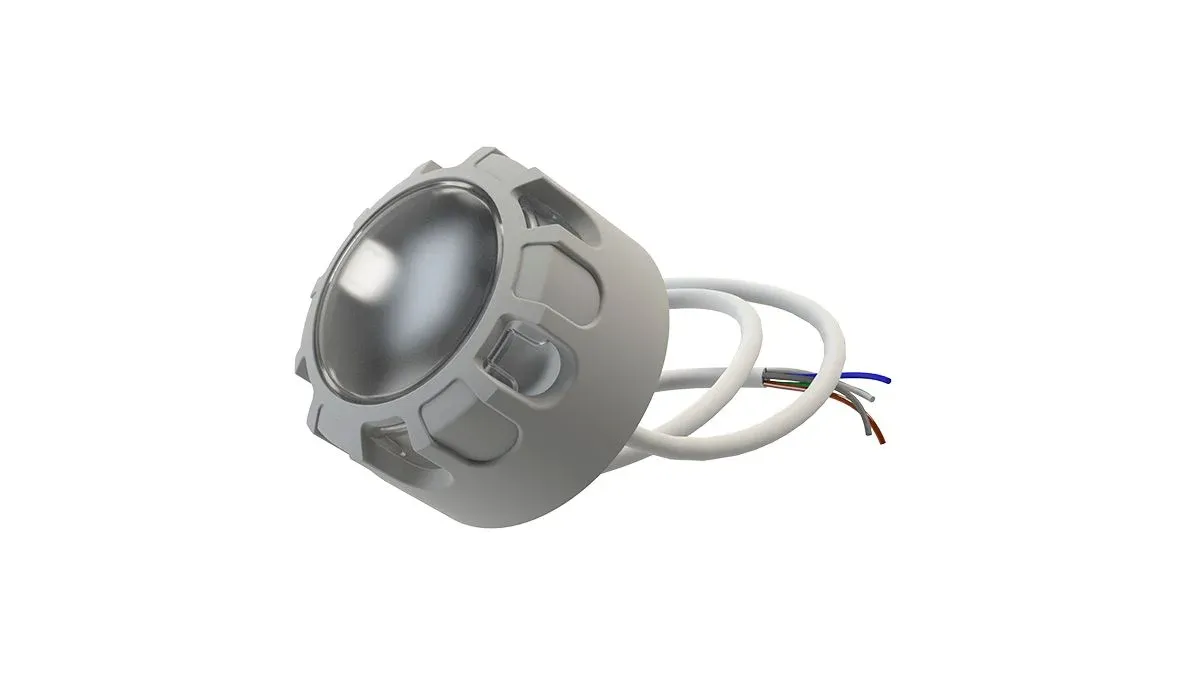

Wire GSM Node
2G/4G/NB-IoT Street light luminaire controller with connection via wire
Wire GSM Node is a wireless 2G/4G/NB-IoT Wire street light controller for individual luminaire control, diagnostics and dimming.
The Wire GSM Node supports the following luminaire control interfaces: DALI, DALI 2.0, PWM, 1-10V, 0-10V. Data exchange between the device and the server is performed via 2G/4G/NB-IoT cellular networks. The luminaire can be controlled by a built-in light sensor, or by a third-party light sensor. The unit has a built-in GPS receiver for geo-positioning, internal clock correction and an internal accelerometer for vibration, acceleration and tilt measurements.
The unit is powered from 110/220 V. The power of the luminaire is supported up to 1000 W.
The Wire GSM Node is configured directly via the QULON software.
The Wire GSM Node is designed to be mounted directly on the lighting pole or luminaire. The Wire GSM Node is IP66 dust and water resistant. Installing via wire..
Ultra compact waterproof IP66 case
Convenient and quick connection via wire
Withstand voltage up to 305V
Works with luminaires up to 1000W
Embedded daylight sensor
Embedded triac for load switching on/off
Motion sensor input for third party sensors
Input for DALI 2.0 QULON's motion sensors and eco sensors
Embedded GPS module
Embedded accelerometer that monitors lighting pole status
Compatible to QULON Eco monitoring station
LEDs showing node status
- Mechanical:
Housing: solid case
Material: plastic
Dimensions, mm: 87(D) x 91,3(69,3)(H)
Mass: 0.2 kg
Mounting: luminaire case, pillar, etc - Power & Electrical:
Input Voltage: ~100-240 VAC, 50/60 Hz
Input Power (max): 5 W
Max load Power: 1000 W - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
Navigation: GPS
Radio Channel: GSM 850/900/1800/1900,
WCDMA 900/2100 (optional) - Inputs / Outputs:
Connectors: wires
Sensors: embedded Daylight sensor,
Motion sensor input, Accelerometer - Configuration / Indication:
Setup: remote via the QULON
Indication: LED - Package Contents:
Wire GSM Node
- Wire GSM Node, 2G, load switch 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer
- : QUL-LW-W-2G-A
- : 5060452240732
- Wire GSM Node, 2G, load switch, 0-10V/PWM/DALI/DALI 2.0
- : QUL-LW-W-2G-B
- : 5060452240749
- Wire GSM Node, 2G, load switch, 0-10V/PWM
- : QUL-LW-W-2G-C
- : 5060452240756
- Wire GSM Node, 2G, 0-10V/PWM
- : QUL-LW-W-2G-D
- : 5060452240763
- Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer, Region: E
- : QUL-LW-W-4G-A
- : 5060452240770
- Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer, Region: A
- : QUL-LW-W-4GA-A
- : 5060452240787
- Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, Region: E
- : QUL-LW-W-4G-B
- : 5060452240794
- Wire GSM Node, 2G/4G, load switch, 0-10V/PWM/DALI/DALI 2.0, Region: A
- : QUL-LW-W-4GA-B
- : 5060452240800
- Wire GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: E
- : QUL-LW-W-4G-C
- : 5060452240817
- Wire GSM Node, 2G/4G, load switch, 0-10V/PWM, Region: A
- : QUL-LW-W-4GA-C
- : 5060452240824
- Wire GSM Node, 2G/4G, 0-10V/PWM, Region: E
- : QUL-LW-W-4G-D
- : 5060452240831
- Wire GSM Node, 2G/4G, 0-10V/PWM, Region: A
- : QUL-LW-W-4GA-D
- : 5060452240848
- Wire GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, accelerometer
- : QUL-LW-W-NB-A
- : 5060452240855
- Wire GSM Node, NB-IoT, load switch, 0-10V/PWM/DALI/DALI 2.0
- : QUL-LW-W-NB-B
- : 5060452240862
- Wire GSM Node, NB-IoT, load switch, 0-10V/PWM
- : QUL-LW-W-NB-C
- : 5060452240879
- Wire GSM Node, NB-IoT, 0-10V/PWM
- : QUL-LW-W-NB-D
- : 5060452240886
