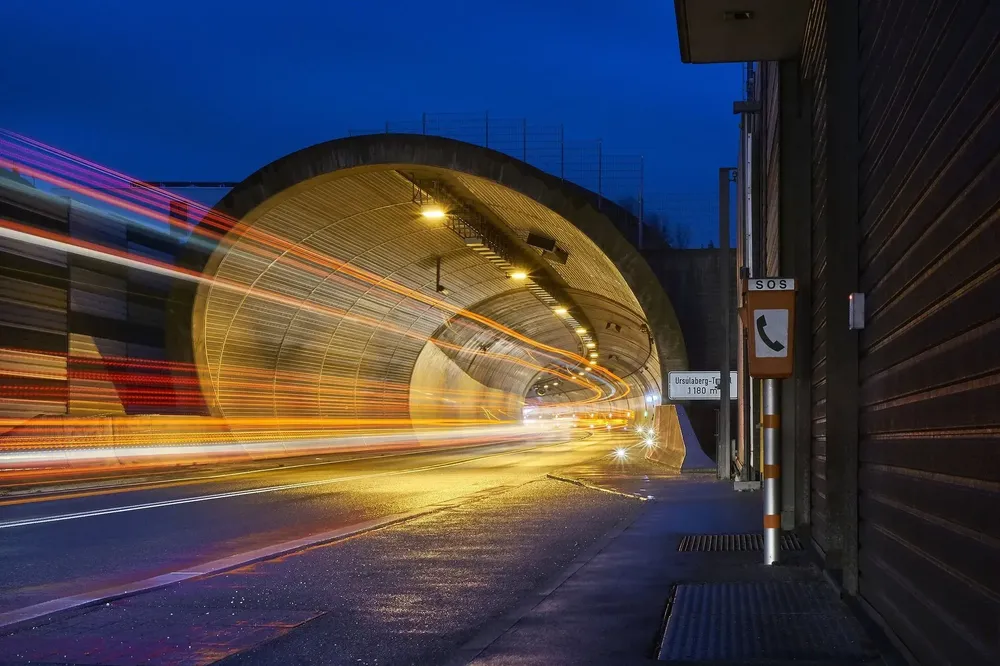

The tunnel lighting control system is an innovative solution designed to ensure safety and efficiency in underground structures. It is built on advanced principles and incorporates several key components that work in harmony to achieve optimal results.
At the core of this system are the lighting controllers, installed within the tunnels, responsible for regulating the intensity and on/off switching of the lighting devices. These controllers receive information from various sources, including luminance sensors. The luminance sensor, operating through Modbus-RTU or wireless technology, measures the level of illumination in the tunnel, providing precise data for adaptive lighting control.
The Simpline system utilizes the existing electrical wiring within the tunnel for data transmission and power distribution between devices. This simplifies installation and reduces the need for additional cabling, resulting in cost savings.
Management and monitoring of the system are carried out through a central system or specialized software called QULON. These platforms offer capabilities for customizing lighting parameters according to specific requirements, as well as providing system status updates and illumination data for analysis and energy optimization
By implementing the QULON system for tunnel lighting, you can enhance the safety and comfort of drivers, reducing potential risks associated with transitions between well-lit and dark areas. The system combines advanced lighting controllers, luminance sensors, and convenient management, utilizing the existing electrical infrastructure. This results in reliable illumination in tunnels that can adapt effectively to various conditions and ensure safe passage.
Energy savings up to 60%
Street lights dim automatically based on schedule or environment, saving up to 60% energy and reducing CO2 emissions
Reduce maintenance costs up to 50%
We reduce service costs up to 50% by proactively alerting maintenance staff of faults/outages in fixtures or networks
Programming tools
Create complex scenarios with QULON devices based on daylight, weather, traffic, air pollution, and holidays - virtually limitless!
Live control
Manage street lights remotely with QULON software. Get live stats, create performance reports with a click for individual or grouped fixtures
Luminance Sensor
Luminance Sensor is a combined device that serves both as a sensor and a camera, designed for tunnel lighting, object surveillance, and high-resolution photo transmission to a control room. It can be equipped with a night vision system and a light level sensor. The device provides monitoring and surveillance of safety in dark and inaccessible areas within the tunnel.
Luminance Sensor communicates with other equipment via RS-485 (Modbus-RTU) interface, 2G/3G/4G mobile networks are used for communication with control system.
The unit is powered via 100-240 V networks.
The unit is configured either via cellular networks or manually.
The unit is designed for mounting on a vertical surface. The unit has an IP66 dust and moisture protection rating.
Wire Simpline Node
Wire Simpline Node is a wired PLC (Power Line Communication) control and dimming module for a luminaire or luminaire group.
Wire Simpline Node is compatible with third-party motion sensors.
Wire Simpline Node supports DALI, DALI 2.0, PWM, 1-10V, 0-10V interfaces and individual load control (on/off).
The unit is powered from 110-230 V. The power of the luminaire is supported up to 1000 W.
Wire Simpline Node is controlled individually by Central Gateway QULON C, C1 or C2 and QULON Simpline via 110-230 V power lines. Simpline technology uses the frequency range of 132.5 kHz according to CENELEC EN 50065-1 (band-C).
The device is designed for installation in a luminaire, in a luminaire body or inside a lighting pole via wire. Dust and moisture protection class IP68.
QULON Simpline
QULON Simpline is an add-on module for remote control of devices equipped with PLC (Power Line Communication) technology modules.
QULON Simpline uses PLC technology to control luminaires. An RS-485 (MODBUS) interface is used to communicate with the the cabinet controllers.
The unit is powered from 100-250 V.
The unit is configured by the QULON software via the cabinet controllers.
The unit is designed for DIN rail mounting in a power supply cabinet.
Street Light Controller QULON C
The Heart of Smart Street Lighting Control
Street Light Controller QULON C is at the core of our smart street lighting control system, offering precise remote monitoring and management capabilities for all lighting electrical components. Designed for modern urban needs, it facilitates secure two-way communication and integrates effortlessly with smart city infrastructure for enhanced lighting management from anywhere.
Street Light Controller QULON C is the central controller of the QULON control system. It is designed to provide remote monitoring and control of all electrical equipment in the lighting control cabinet: magnetic starters, QULON system accessories, etc.
Street Light Controller QULON C uses RS-485 or CAN interfaces for two-way communication with other devices and meters. 2G cellular communication is used to communicate with the QULON server.
The unit is powered from 110/220 V AC or 9-36 V DC.
The Street Light Controller QULON C is remotely configurable using the QULON control system and DIP switches on the unit.
The unit is designed for DIN rail mounting in a lighting control cabinet.
Street Light Controller QULON C1
Street Light Controller QULON C1 is designed for remote diagnostics and control of street lighting systems.
For two-way communication with other devices and meters, Street Light Controller QULON C1 uses RS-485 interfaces. A 2G cellular connection is used to communicate with the QULON server.
The unit is powered from 110/220 V AC or 9-36 V DC.
The Street Light Controller QULON C1 can be configured remotely using the QULON control system and the DIP switches on the unit.
The unit is designed for DIN rail mounting in a lighting control cabinet.
Street Light Controller QULON C2
Street Light Controller QULON C2 is the central controller of the QULON control system. It is designed to provide remote monitoring and control of all electrical equipment in the lighting control cabinet: magnetic starters, QULON system accessories, etc.
Street Light Controller QULON C2 uses RS-485 or CAN interfaces for two-way communication with other devices and meters. A 2G/3G/4G cellular or 10/100 Base TX Ethernet wired connection is used to communicate with the QULON server. The unit is equipped with a GPS module for time synchronization and geo-positioning.
The unit is powered from 110/220 V AC or 9-36 VDC.
Street Light Controller QULON C2 is remotely configurable using the QULON control system and the DIP switches on the unit.
The unit is designed for DIN rail mounting in a lighting control cabinet.
