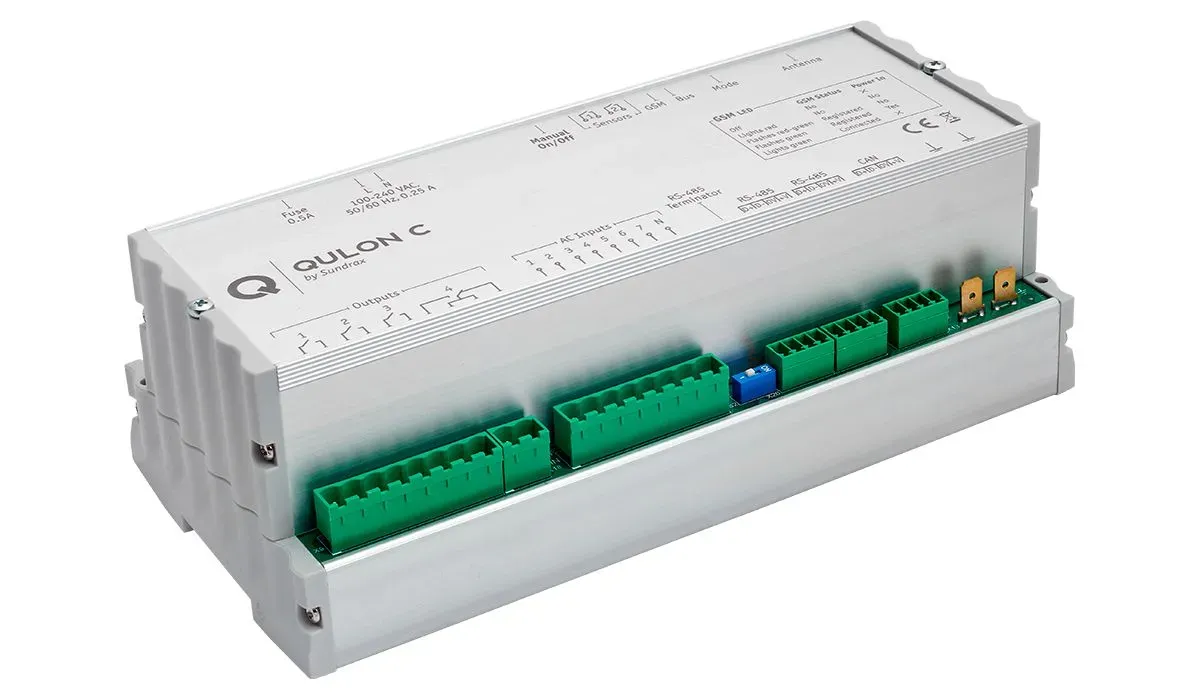

Street Light Controller QULON C
Medium street lighting cabinet/segment controllers
The Heart of Smart Street Lighting Control
Street Light Controller QULON C is at the core of our smart street lighting control system, offering precise remote monitoring and management capabilities for all lighting electrical components. Designed for modern urban needs, it facilitates secure two-way communication and integrates effortlessly with smart city infrastructure for enhanced lighting management from anywhere.
Street Light Controller QULON C is the central controller of the QULON control system. It is designed to provide remote monitoring and control of all electrical equipment in the lighting control cabinet: magnetic starters, QULON system accessories, etc.
Street Light Controller QULON C uses RS-485 or CAN interfaces for two-way communication with other devices and meters. 2G cellular communication is used to communicate with the QULON server.
The unit is powered from 110/220 V AC or 9-36 V DC.
The Street Light Controller QULON C is remotely configurable using the QULON control system and DIP switches on the unit.
The unit is designed for DIN rail mounting in a lighting control cabinet.
Scenario scheduling and live remote control
Full management through built-in GSM/2G modem
Independent control of each phase
Powerline individual control with Qulon Simpline
Access to electric meter and other sensors via RS-485
Identification and immediate alert of electrical faults
Withstand voltage up to 305 V
Built-in backup power supply
Built-in AC/DC power supply
Non-volatile memory for data storage
Astronomical clock onboard
Straightforward design for simple installation
- Mechanical:
Housing: aluminum DIN mounted case
Material: metal, plastic
Dimensions, mm: 212(L) x 74,5(H) x 105(W)
Mass: 0.85 kg
Mounting: DIN (12 modules) rail - Power & Electrical:
Input Voltage: ~100-240V 50/60 Hz; –9-36V
Input Power (max): 5 W
Mains Fuse: 0.5 A - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 95%
IP Rating: IP 20
Certification: CE, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Serial interface: RS-485, CAN, 2G
Radio Channel: GSM 850/900/1800/1900
Max length of RS-485 line: 1500 m - Inputs / Outputs:
Relay outputs: 4
Voltage control inputs: 6
Max voltage and current at outputs: 240 V, 5 A
Max voltage at inputs: 240 V
Number of sensor inputs: 2 - Configuration / Indication:
Setup: remote via GSM/2G
Indication: LEDs for GSM and RS-485 activity - Package Contents:
Street Light Controller QULON C
Connector set
- Street Light Controller QULON C, AC, 2G, 4 relays, 7 inputs, RS, CAN
- : QUL-C-2G0407X
- : 5060452240107
- Street Light Controller QULON C, DC, 2G, 4 relays, 7 inputs, RS, CAN
- : QUL-C-2G0407X-DC
- : 5060452240114
