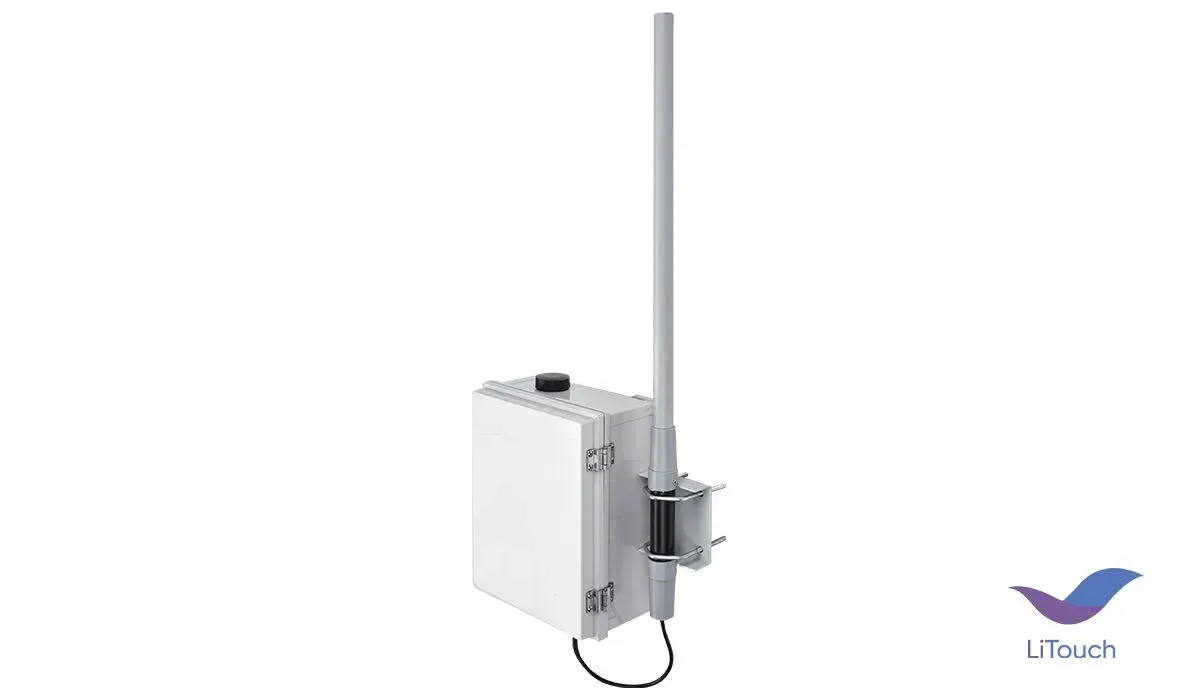

LiTouch Base Station
Advanced IoT Gateway for wireless street lighting management
LiTouch Base Station is a base station for the individual control of LiTouch Nodes equipped luminaires via radio. The unit allows each luminaire to be individually controlled remotely, monitoring its status and energy consumption.
The 868/915 MHz radio channel is used for communication with the luminaires. The base station can serve up to 1000 LiTouch Nodes at distances of up to 5 km, depending on terrain and building density.
Communication with the QULON server is via a 2G/3G/4G mobile network or a wired Ethernet connection.
The unit is configured remotely using the QULON software.
The unit is designed to be mounted on a pole lighting or vertical surface. The unit is IP66 dust and water resistant.
Long-range communication (5 km)
Compact size, easy to deploy
Licence-free radio frequencies for LiTouch communication
Supports Ethernet connection
Independent from other wireless networks
Works in severe climate conditions (IP66)
Integrates wireless lighting networks into IoT software environment
- Mechanical:
Housing: plastic case
Material: metal, plastic
Dimensions, mm: 302,6(L) x 321,3(828,3)(H) x 172,1(W)
Mass: 7 kg
Mounting: pole or wall - Power & Electrical:
Input Voltage: ~100-240 VAC, 50/60 Hz
Input Power (max): 10 W - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Navigation: GPS
Serial interface: RS-485, CAN
Radio Channel: GSM 850/900/1800/1900
Lan: Ethernet 10/100 Base-TX
LiTouch communication: ISM band 868/915 MHz - Inputs / Outputs:
Ethernet port: 1
868/915 MHz Antenna input: 1 - Configuration / Indication:
Setup: locally via Ethernet; remote via 2G/3G/4G
Indication: LEDs for GSM, Ethernet, RS-485 and LiTouch activity - Package Contents:
LiTouch Base Station
- LiTouch Base Station, 2G/3G/4G, RS, Ethernet, GPS, 868 MHz, Region: E
- : QUL-BSF
- : 5060452242200
- LiTouch Base Station, 2G/3G/4G, RS, Ethernet, GPS, 915 MHz, Region: A
- : QUL-BSF-A
- : 5060452242217
