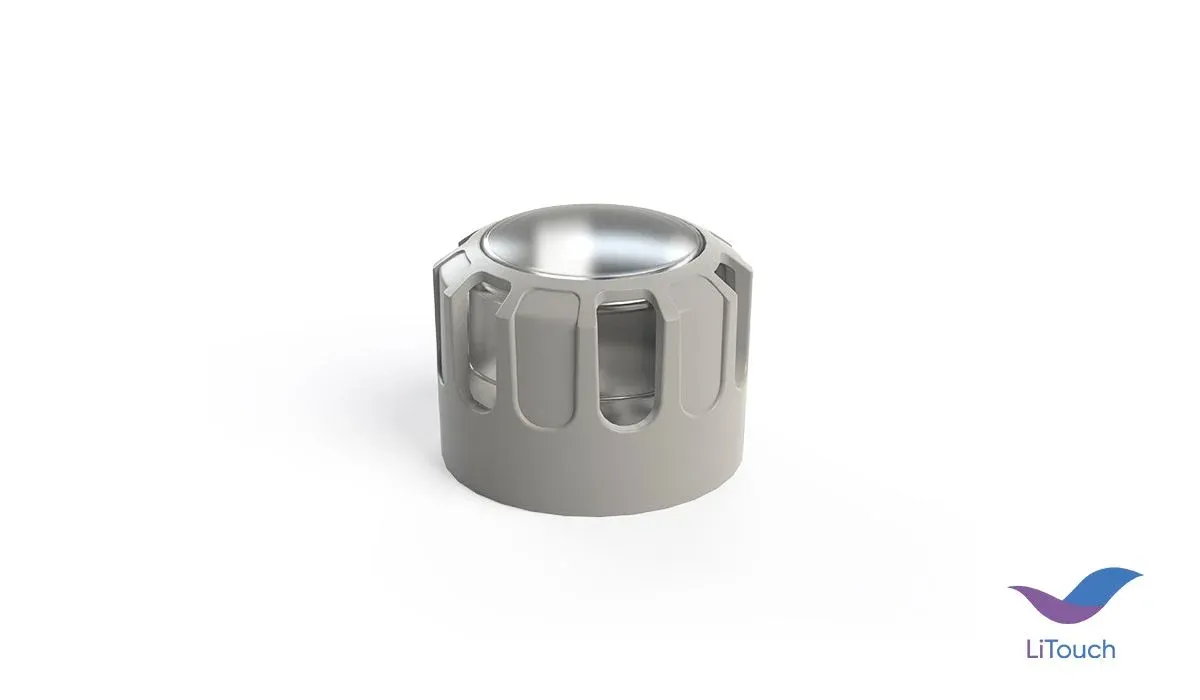

NEMA LiTouch Node
LiTouch wireless (868/915 MHz) NEMA street light luminaire controller
NEMA LiTouch Node is a module for wireless control of luminaires via radio. It is designed for individual control, diagnostics and dimming.
Individual control module for LiTouch wireless lighting management system (868/915 MHz) is a device that can be connected to the LiTouch system through a NEMA connector. It allows for individual control of the lighting system and is compatible with both 868 and 915 MHz frequency bands. With the LiTouch system, users can easily manage their lighting system wirelessly and without the need for additional wiring. The device is designed for easy installation and can be mounted in various locations.
The device supports DALI, DALI 2.0, PWM, 1-10V, 0-10V interfaces as well as individual load control (on/off). The units are equipped with GPS receiver, depending on the version.
NEMA LiTouch Node is configured and controlled via an 800-950MHz radio channel via LiTouch Base Stations.
The device is designed to be installed in a lighting fixture housing using a NEMA C136.41 connector.
Convenient and quick connection via NEMA connector
Individual lighting control without additional wiring
Available for installation into any luminaire case
Embedded light sensor
Optional embedded GPS receiver
Optional triac for on/off load switching
Motion sensor input
Automatic node positioning on the map
Tilt/vibration sensor for diagnosing pole state/failure
Available to connect QULON eco monitoring sensors through DALI 2.0
- Mechanical:
Housing: solid case
Material: plastic
Dimensions, mm: 87(D) x 82,8(69,3)(H)
Mass: 0.3 kg
Mounting: luminaire case - Power & Electrical:
Input Voltage: ~100-250 VAC, 50/60 Hz
Input Power (max): 5 W
Max load Power: 1000 W - Environment:
Operating Temperature: -40...+70°C
Storage Temperature: -50...+80°C
Operating Relative Humidity (max): 100%
IP Rating: IP 66
Certification: CE compliant, RoHS
Warranty: 36 Month - Interfaces and Protocols:
Control output interface: DALI, DALI 2.0, PWM, 1-10V, 0-10V
Navigation: GPS
Communication with controller: ISM band 868/915 MHz - Inputs / Outputs:
Connectors: NEMA C136.41 plug
Sensors: motion sensor input, embedded light sensor - Configuration / Indication:
Setup: remote via Base station
Indication: LED - Package Contents:
NEMA LiTouch Node
- NEMA LiTouch Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor,Region: E
- : QUL-LT-868-N-A
- : 5060452241333
- NEMA LiTouch Node, load switch, 0-10V/PWM/DALI/DALI 2.0, GPS, acelerometer, light sensor, Region: A
- : QUL-LT-915-N-A
- : 5060452241340
- NEMA LiTouch Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: E
- : QUL-LT-868-N-B
- : 5060452241357
- NEMA LiTouch Node, load switch, 0-10V/PWM/DALI/DALI 2.0, light sensor, Region: A
- : QUL-LT-915-N-B
- : 5060452241364
- NEMA LiTouch Node, load switch, 0-10V/PWM, light sensor, Region: E
- : QUL-LT-868-N-C
- : 5060452241371
- NEMA LiTouch Node, load switch, 0-10V/PWM, light sensor, Region: A
- : QUL-LT-915-N-C
- : 5060452241388
- NEMA LiTouch Node, 0-10V/PWM, Region: E
- : QUL-LT-868-N-D
- : 5060452241395
- NEMA LiTouch Node, 0-10V/PWM, Region: A
- : QUL-LT-915-N-D
- : 5060452241401
